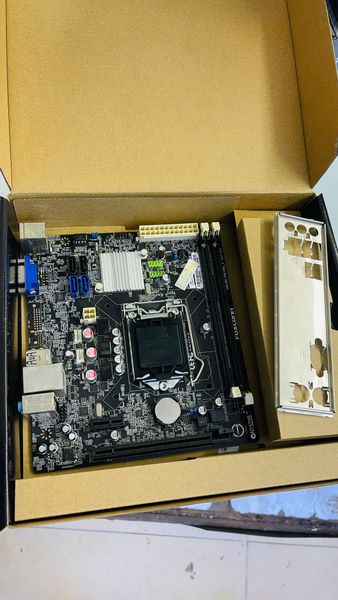

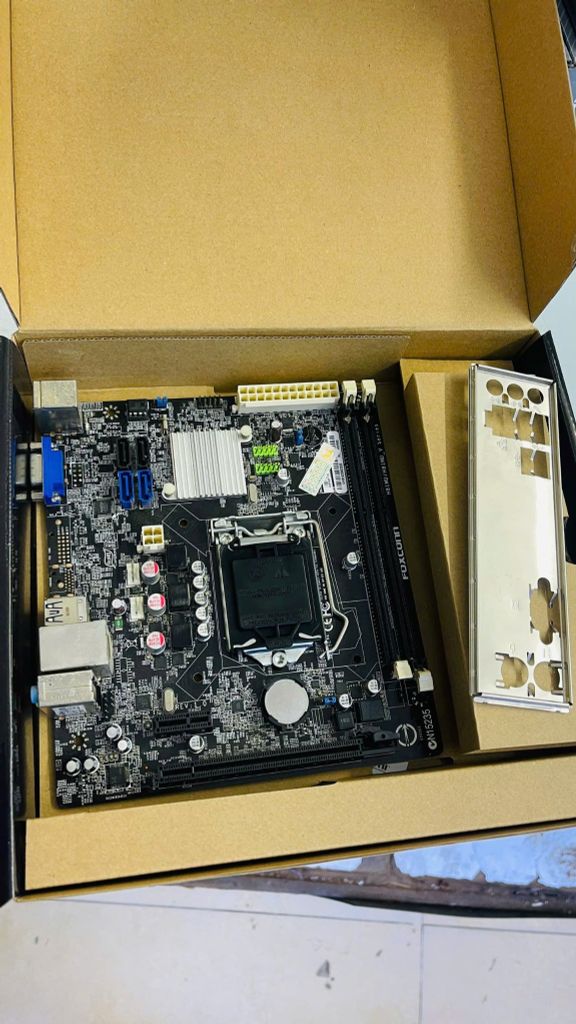

Mainboard Foxconn H81 cũ Bh 01 tháng
Thông số: ProcessorSupports the Intel® 4th generation Core™ i7 / Core™ i5 / Core™ i3 processors with Socket 1150
Max 84w
Notes:Please check our CPU compatibility table for full detailsChipsetIntel® H81 ChipsetFront Side Bus Memory2* dual-channel 1600MHz DDRIII slots, up to 16GBVGA on DieIntel® HD Graphics, support VGA,HDMI display interfaceExpansion Slots1* PCIe x16 slot
1* PCIe x1 slotIDE Serial ATA(SATA)/RAID2* SATAIII , 2* SATAIIAudio5.1channel HD AudioLANRealtek GigaLanIEEE1394 Back Panel I/O Ports1x PS2 keyboard port
1x PS2 Mouse port
1x HDMI port
1x VGA port
1x Serial port
2x USB 2.0 ports
2x USB 3.0 ports
1x RJ45 port
1x 3-port audio jacksInternal I/O Connectors1x ATX 24-Pin power conn
1x 4-pin ATX 12V power conn
2x 4-pin CPU/System FAN
1x Front pannel header
1x Front Audio header
2x SATA2 connectors
2x SATA3 connectors
2x USB 2.0 headers
1x CLR_CMOS header
1x Speaker headerBIOS Features64Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0Support CDDrivers, Adobe Reader, SuperUtilities, Norton Internet SecurityStandards/Manageability Special Features Form FactormATX form factor 8.5 inch x 6.8 inch
